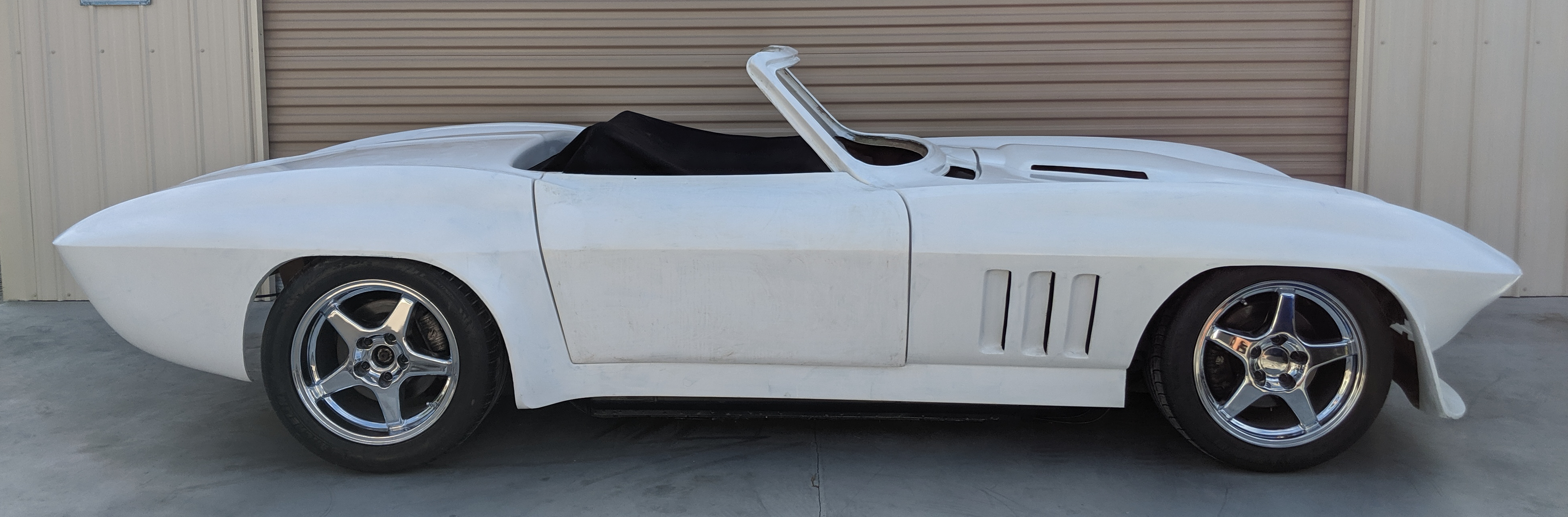

Mecham Racing 65 CR Right Side

65CR

Introducing a spectacular new automotive canvas from Mecham Racing

a vehicle reminiscent of a 1965 Corvette with Racing Modifications

Mecham Racing    MOTIVATION    Prototype BUILD



---------------------------------------------------

Features

One piece fiberglass body (non-stressed)

Front axle center moved forward 1” increasing the wheel base to 99”

High design, fully integrated wide fenders

Lowered nose with integrated front air dam

Adjusted tail with filled lower quarter

Eliminated flip headlamps and turn lamp knobs

---------------------------------------------------

Prototype Specifications

Chassis: Triangulated spaceframe with flat floor

Layout: Front-mid engine RWD Coupe

Wheelbase: 99 in.

Overall length: 173 in.

Overall width: 75 in.

Track F/R: 58.5 in./60 in.

Wheels F/R: 18"x10"/18"x12"

Tires F/R: 275-35R18/315-30R18

Ground clearance: 4.75 in.

---------------------------------------------------

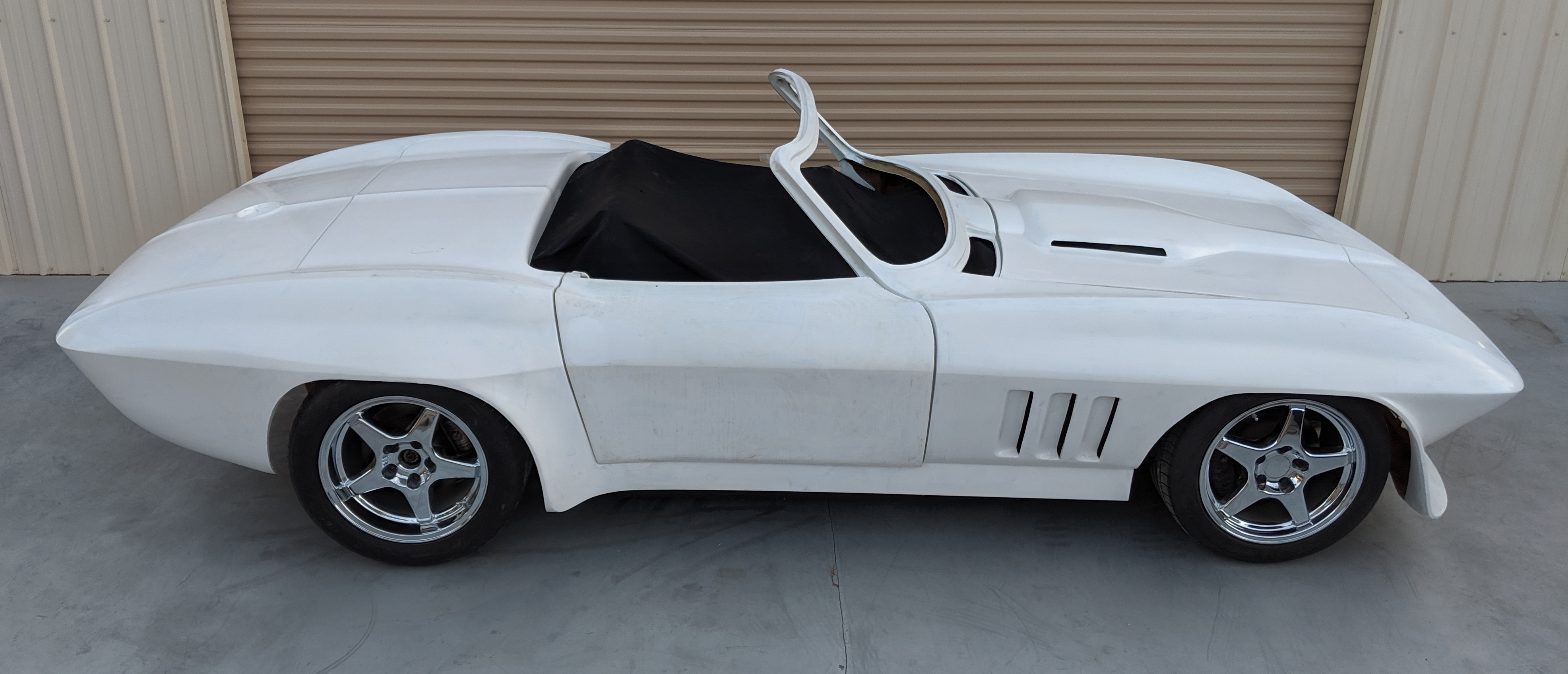

65 CR Upper Right Side

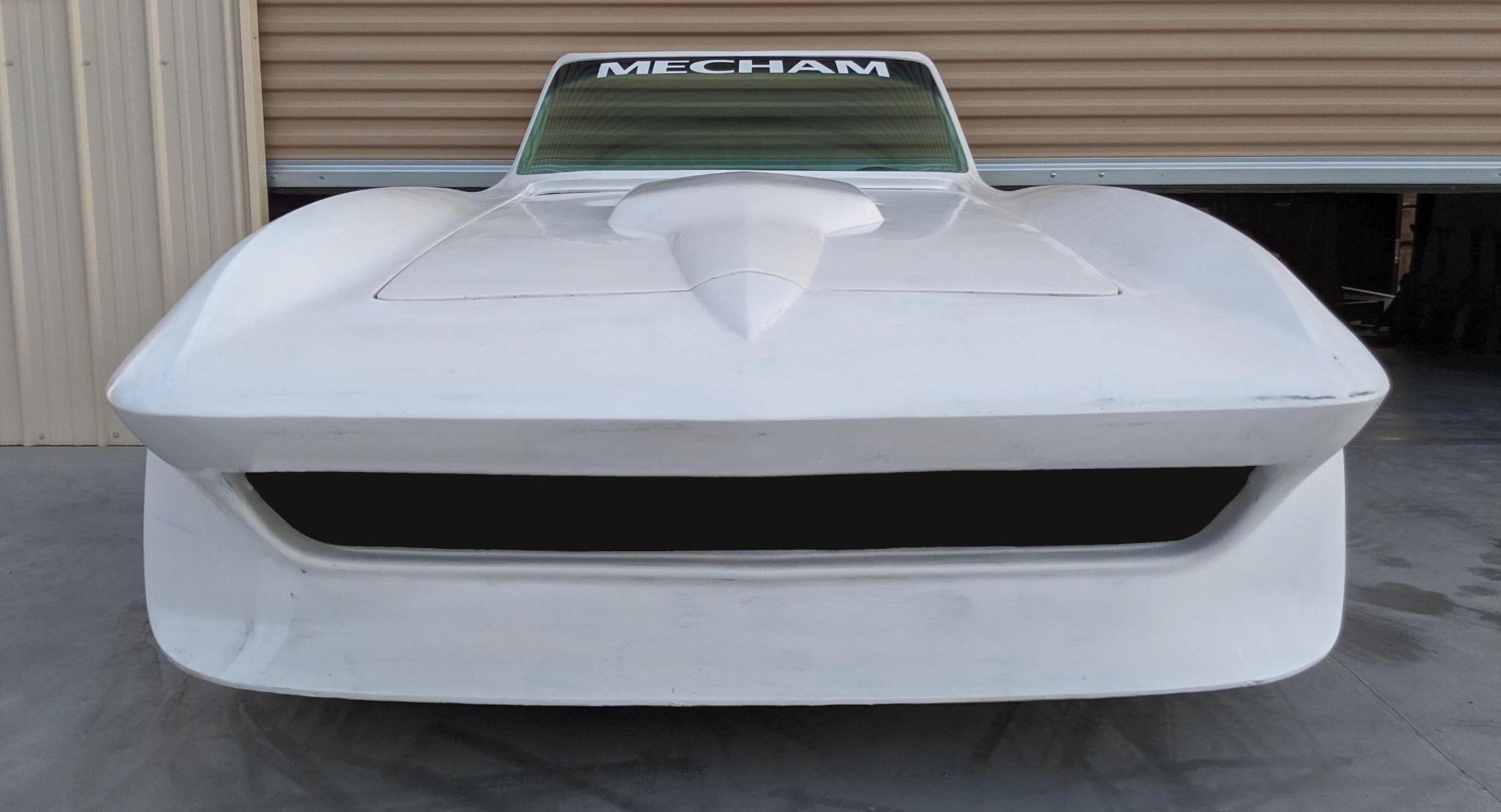

65 CR Front

Integrated front air dam

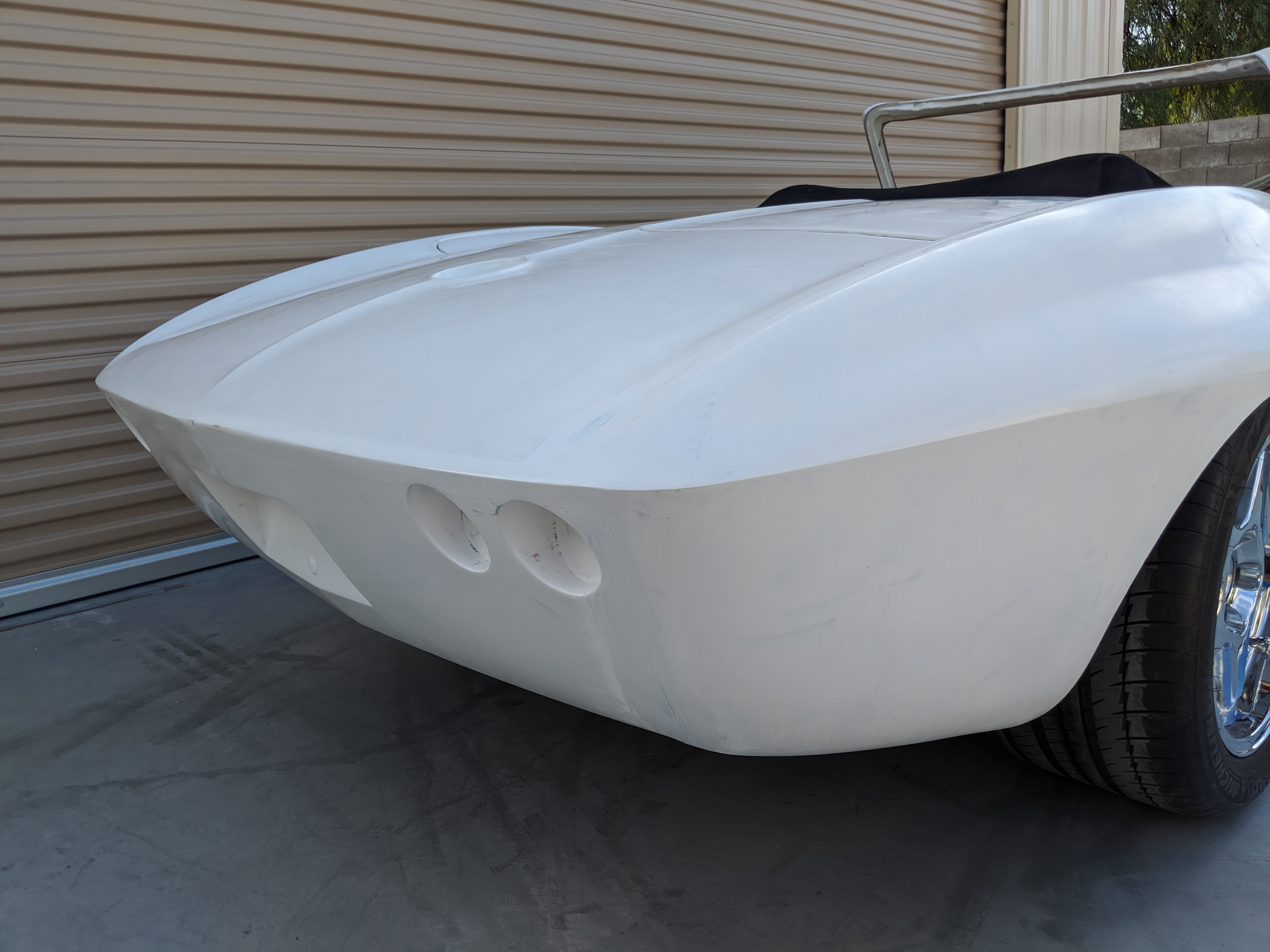

65 CR 3/4 Rear

Filled lower quarter

---------------------------------------------------

Mock-up Notes

Pictured above on a modified C4 Corvette chassis for mock-up purposes only

Mock-up wheel/tire combinations shown are as follows:

Front: Michelin Pilot Sport 275/40ZR17 tires on 17"x9.5" wheels

Rear: Michelin Pilot Sport 335/35ZR17 tires on 17"x11" wheels

Mock-up ground clearance at the front air dam is 5.75"

---------------------------------------------------
